Polishing Machines For Granite or Marble Slabs

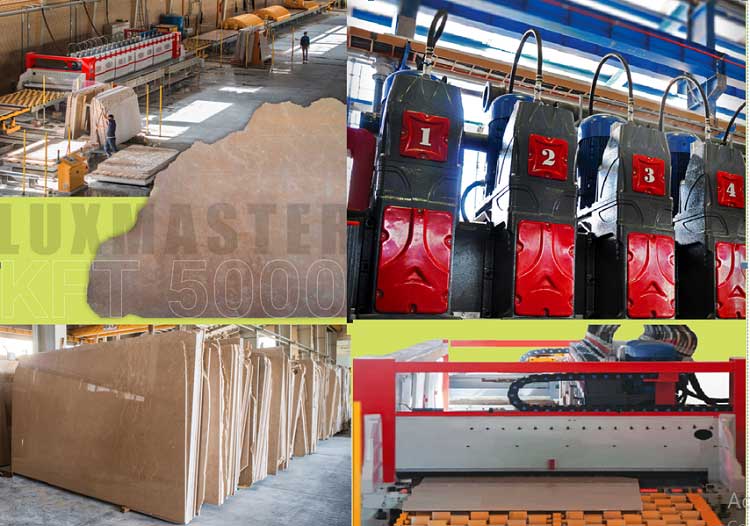

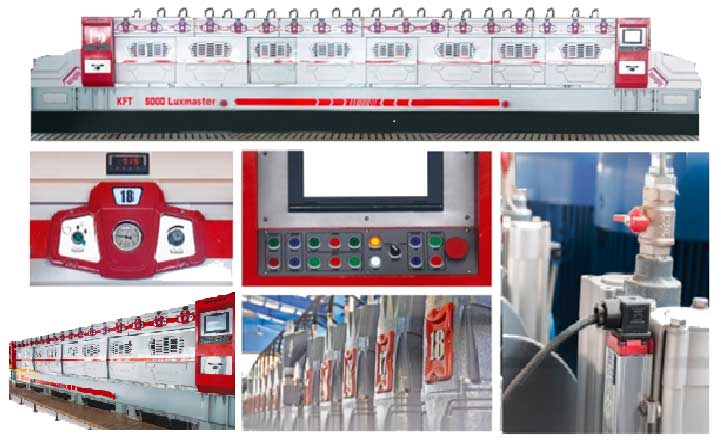

The oscillation of the bridge of the polishing machine can move several spindles at the same time without a limit for irregular slabs. KFT LUX MASTER Model offers the highest productivity levels and it is available in versions up to 20  heads, with a single bridge.

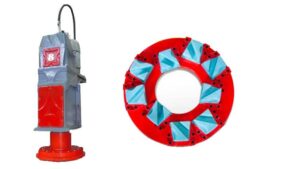

Polishing spindle units

Technical know-how, experience, and related knowledge of engineering followed by the design of spindle units being fabricated particularly only in advanced machines.

• . The material of spindle units is made of special metal alloys enabling hardening capability followed by an Anodized process.
• The spindle body is made of special cast iron, thus allowing a high rigidity and capability to absorb vibrations.

Special plated

• Each spindle units of the machine have unique quality abrasive holding plates.
• The plate diameter is  550 mm, and 8 to 10 abrasives can be mounted simultaneously.
• The slabs are polished at any angle as a result of the high dynamic stability design of these plates.
• Using ultra-advanced bumpers on these plates prevents damage to the stone and improves the quality of the polishing.
• One of the most important advantages of these plates is the reduction of abrasive consumption and final polishing uniformity of the stone width.

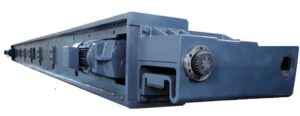

Animated bridge with a dynamic and stable design

• The moving beam carrying the spindle is made of a special alloy metal sheet.
• Impact design, proceeded by locating the proper bridge center of gravity leading to the least vibration developed while bridge movement while machine operation, which made the KFT 5000 LUX MASTER Competitive with European machines.
• The speed of this moving bridge can be increased to 70 m/h,

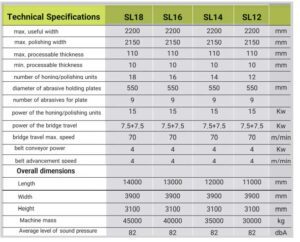

• Polishing machines with 16, 18, and 20 spindle units and pre-polishing machines with 12 and 14 spindle units are among the products of the company machinery.
• The special design of this machine will increase production and deliver the highest quality of stones.

• Fractures of the stone are detected anywhere and in any form by the ultra-advanced camera which issue commands to the spindle units. The use of the camera is the result of the joint cooperation of the company with a reputable foreign manufacturer.
• The quality of the output slab stones and the level of the luminosity of the surface give you the opportunity to experience a successful export.

For more information about processing stone machinery, you can contact Karduk.
